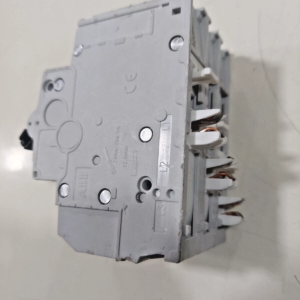

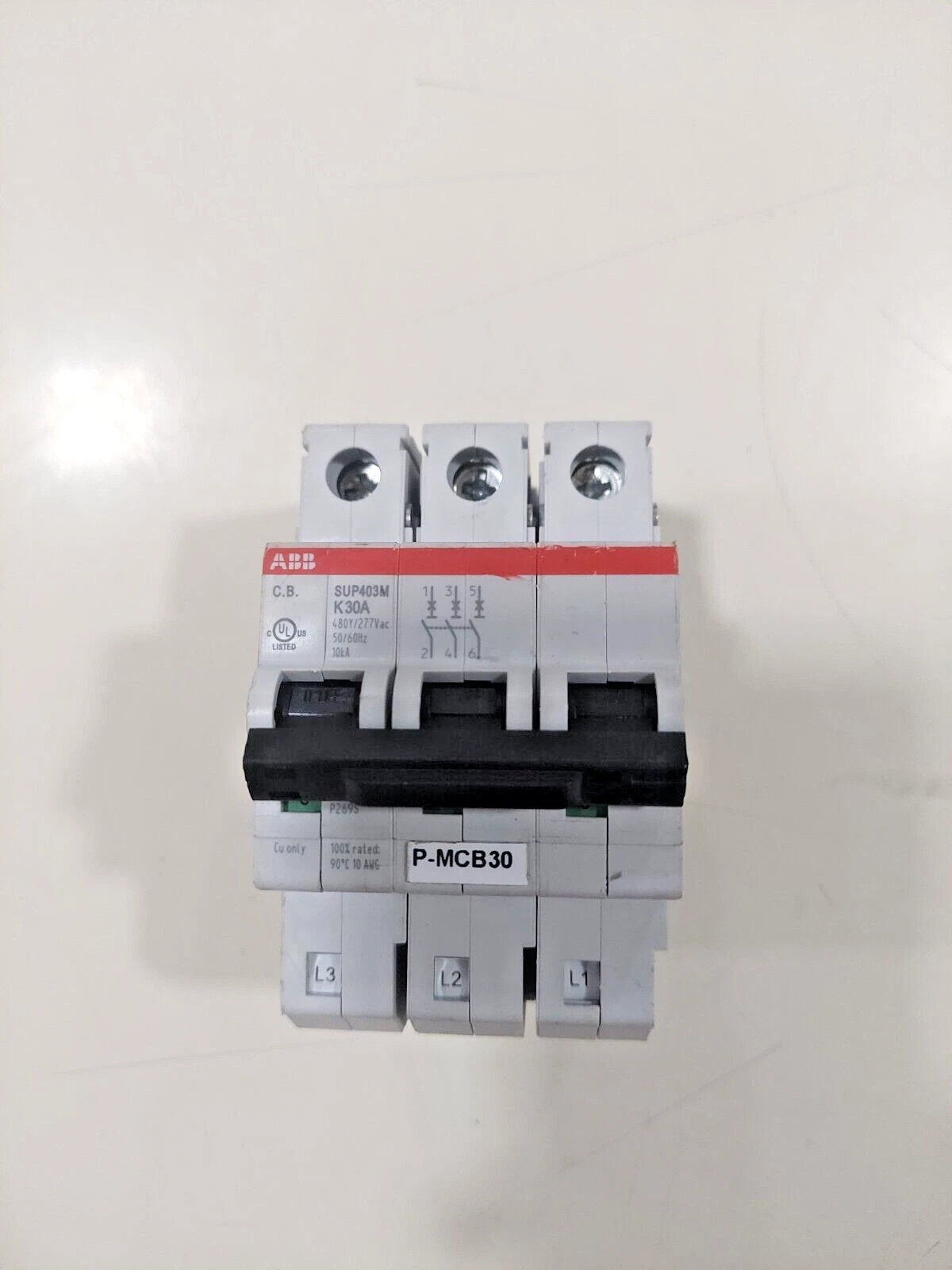

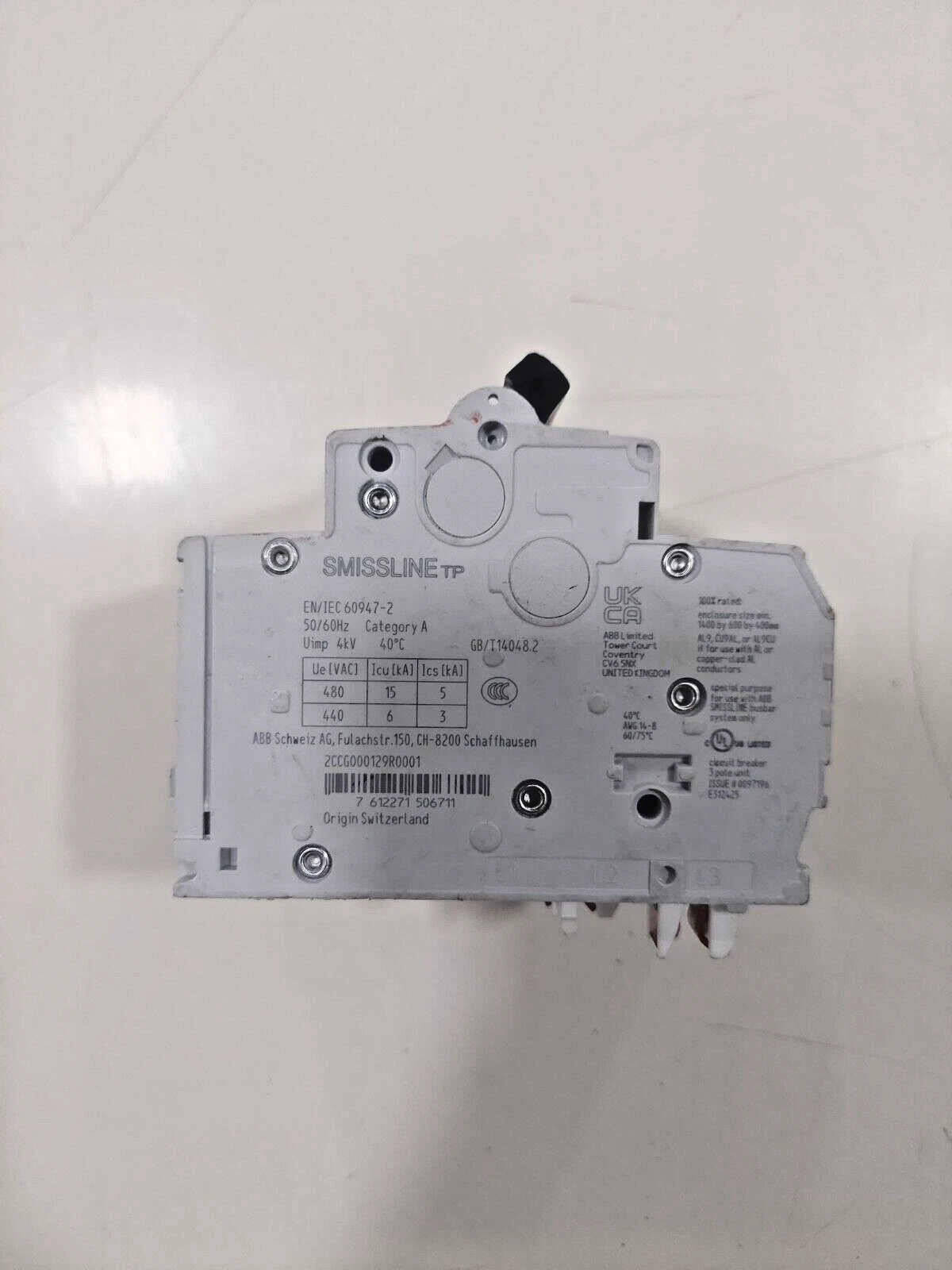

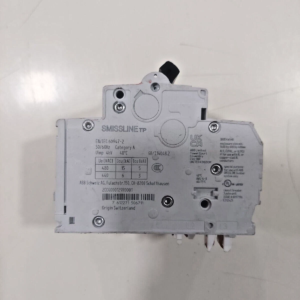

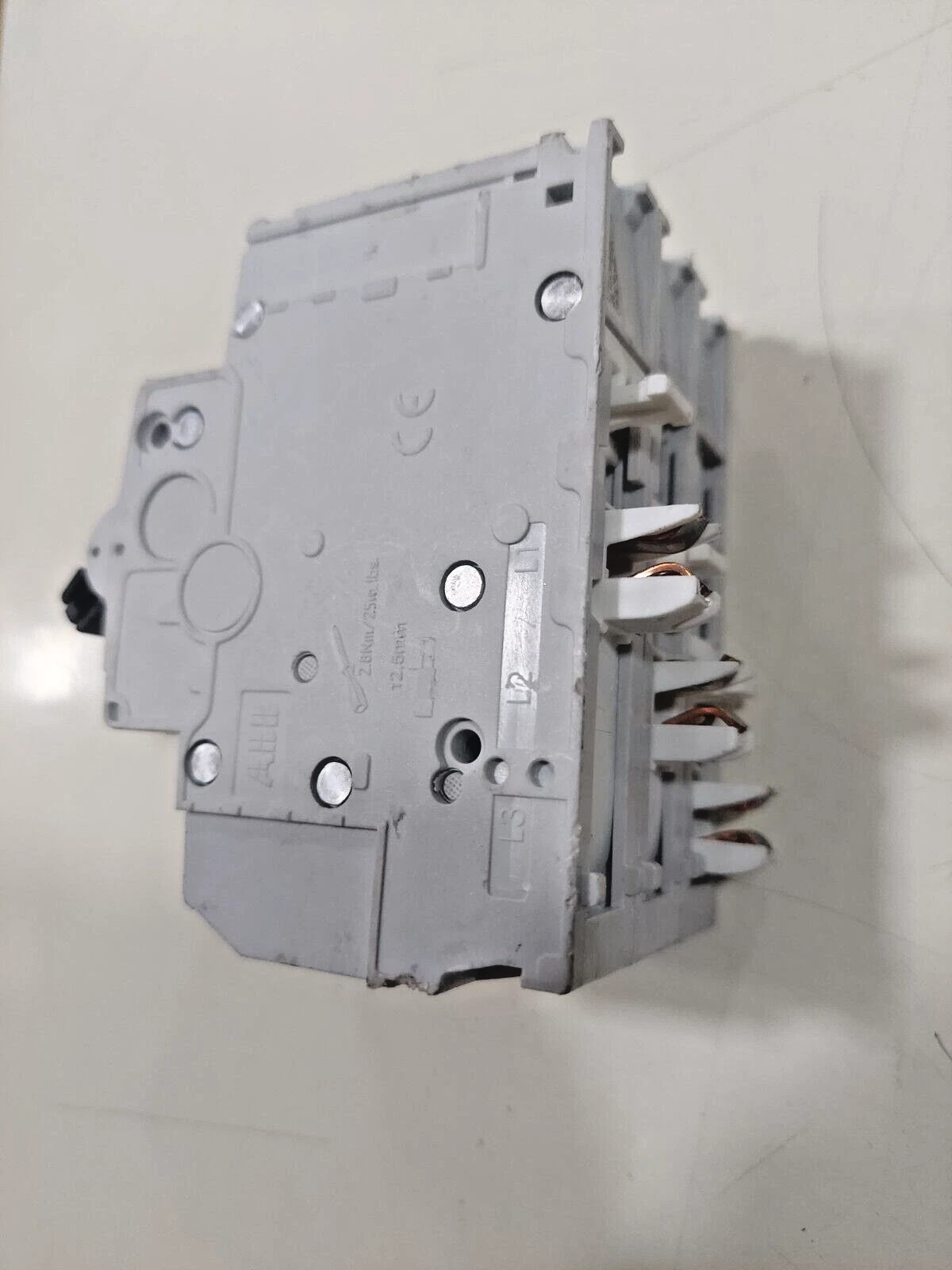

ABB SUP403M-K30A MCB SMISSLINE 480Y/277V 2CCG000129R0001 SUPERIOR QUALITY PRODUCT FREE SHIPPING WORLDWIDE
Extended Product Type:
SUP403M-K30
Product ID:
2CCG000129R0001
EAN:
7612271506711
Catalog Description:
SUP403M-K30 Miniature Circuit Breaker
Long Description:
Technical
Tripping Characteristic:
K
Rated Operational Voltage:
acc. to IEC 60898-1 480 V
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
30 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(230 V) 30 kA
(400 V) 30 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(240 V AC) 15 kA
(415 V AC) 15 kA
(480Y / 277 V AC) 5 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
50 %
Rated Frequency (f):
50 … 60 Hz
Power Loss:
8.1 W
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
10000 cycle
Number of Protected Poles:
3
Number of Poles:
3
Overvoltage Category:
III
Tightening Torque:
2.8 N·m
Actuator Marking:
I / O
Mounting Position:
Any
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Number of Batteries:
0
Connecting Capacity:
Flexible 0.75 … 25 mm²
Rigid 0.75 … 35 mm²
ABB Miniature circuit breaker SMISSLINE TP,configurations (1P,2P,3P), Tripping characteristic K, Rated breaking capacity acc. UL489 10kA
