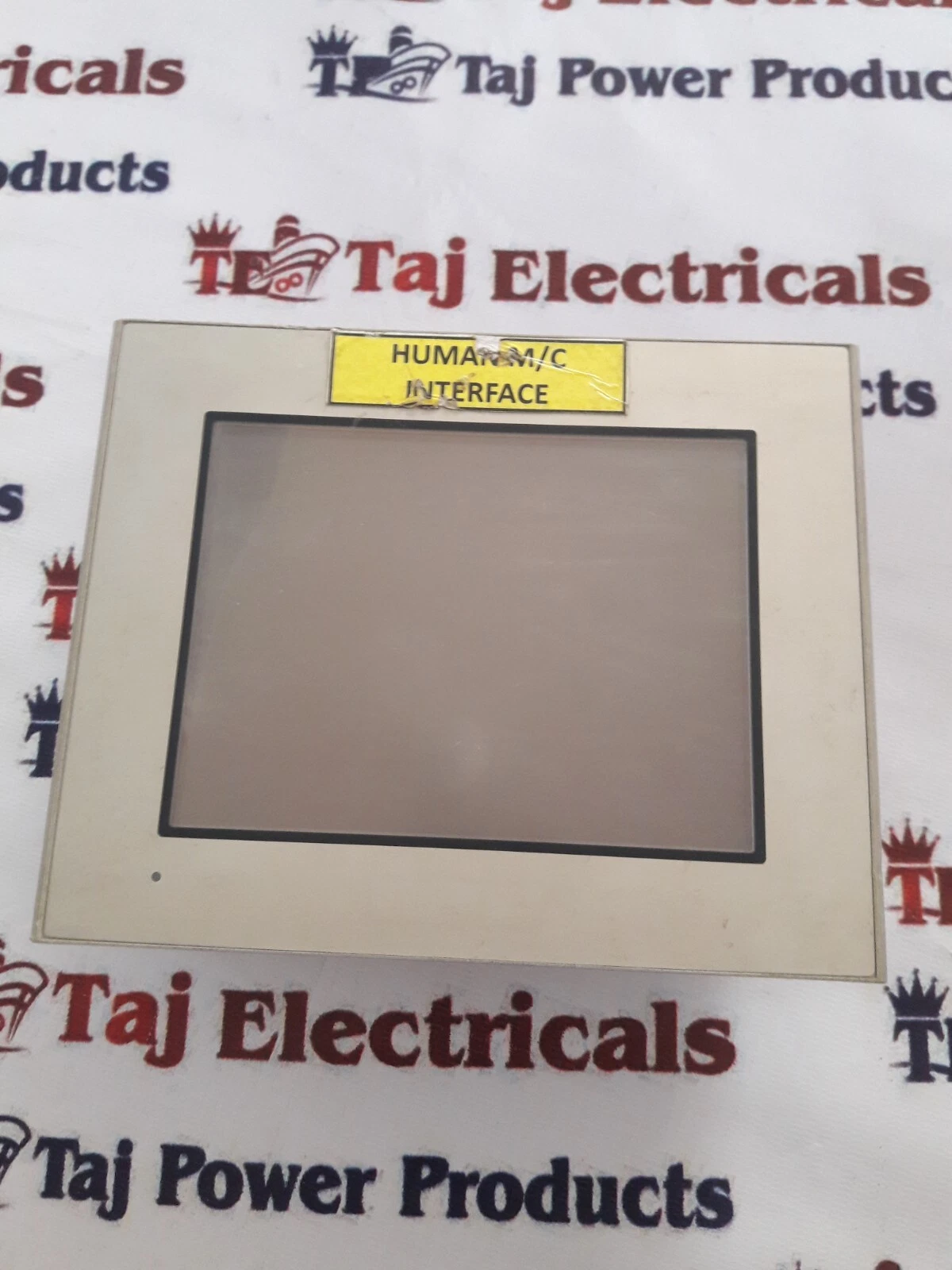

SIEMENS 6AG1 644-0AA01-4AX0 HMI SUPERIOR QUALITY PRODUCT SHIPPING WORLDWIDE
ST6000 Series
DC power supply
TFT color LCD
Panel cut-out size different
Display resolution different
For more details, refer to the “”Replacement Guidebook””.
Display type
TFT Color LCD
Display size
5.7″
Resolution
320 x 240 pixels (QVGA)
Effective display area
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
Display colors
65,536 colors (No blink) / 16,384 colors (Blink)
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
8 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel resolution
1,024 x 1,024
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
